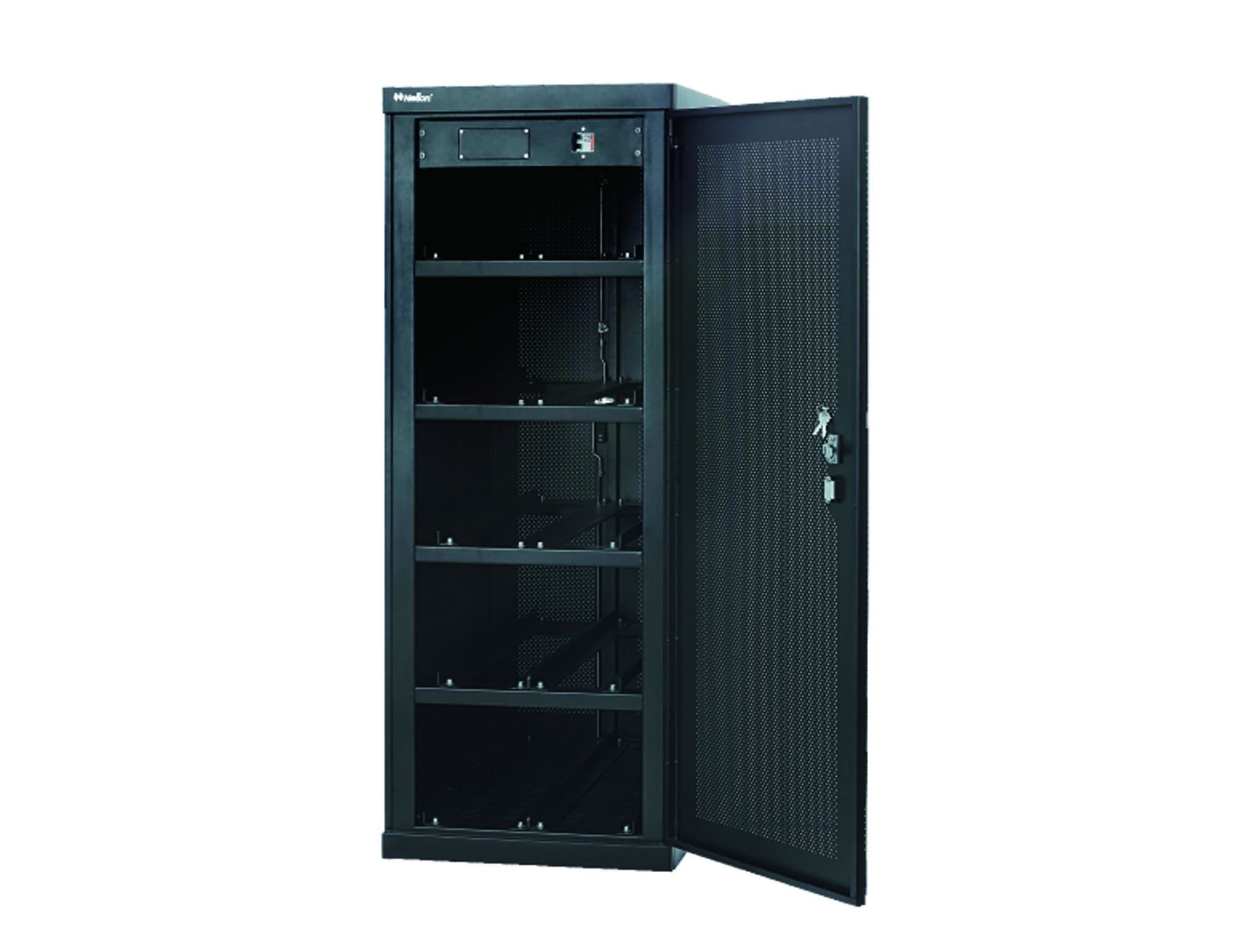

Using the shape size of the 19 " inch standard cabinet, and the shape of the cabinet, the overall beauty with the frame UPS use, to provide users with close long delay backup battery space can be installed 12 V 24 AH, 38 AH, 65 AH, 100 AH and other specifications of the battery using overcurrent protection device, to prevent short circuit.

● Major structure

High quality cold rolled steel plate is adopted, in which the front and rear columns, upper, lower and lower beams and side beams are 2.0mm thick steel plate. The bearing structure of each layer is adapted to the requirements of serial and parallel link of various types of capacity batteries.

● Surface preparation

The surface of the battery cabinet adopts advanced electrostatic powder paint baking process, the coating is firmly attached, anti-oxidation, acid and alkali resistance, and the fixing screws of the battery cabinet are black (colored zinc plating).

● Loading capacity

The structure is strong with a maximum static load of 1000 Kg and a rated static load of 900 Kg.

● Mesh-type front and rear doors

The front and rear doors are honeycomb holes, the front door is single open and the back door is double open.

The air outlet mesh of the back door and the front door mesh cooperate to form the air on the circulation channel, improve the heat dissipation rate of the cabinet, and effectively prolong the service life of the battery.

?
