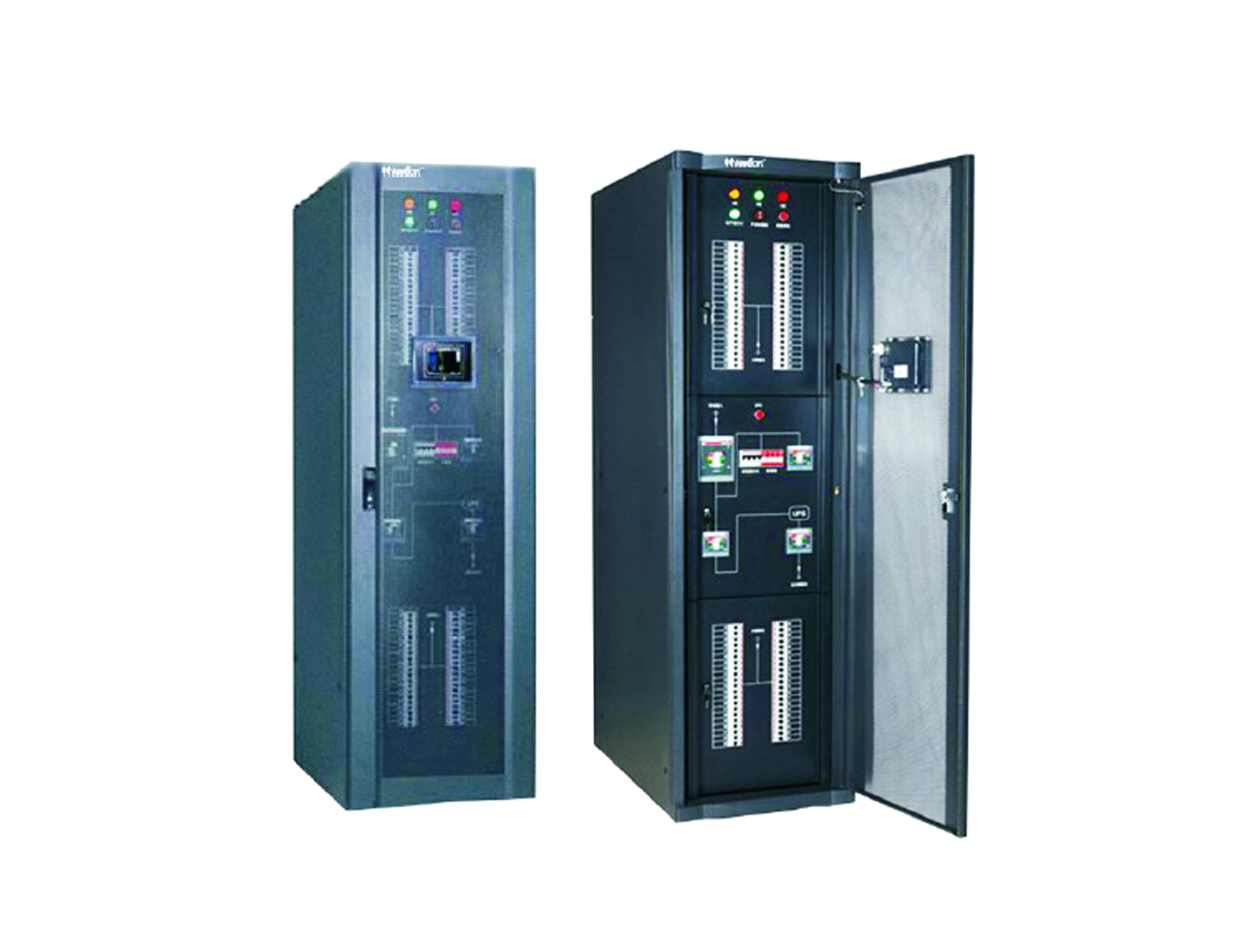

Double row micro module (intelligent column head cabinet)

Basic Features

Intelligent column header cabinet is a distribution cabinet that comprehensively collects all energy data for the energy terminal of the data center computer room. It provides high-precision measurement data for the terminal energy monitoring system, reflects the power quality data in real time through the display unit and uploads it to the background dynamic environment control system through digital communication, so as to achieve effective management of the real-time monitoring and operation quality of the entire distribution system, help users optimize the network data center, strengthen energy consumption management, improve the server operation efficiency, and provide reliable guarantee for the all-round green data center.


Technical Specifications

Ratedpower

60KW、100KW、160KW

Ratedcurrent

100A、160A、250A

Ratedvoltage

380VAC/50Hz

Power supply ? system

Three phase five ? wire (TN-S)

Output branch

Up to 108 single ? routes, up to 54 dual routes

Power display

A、B、C3 phase LED ? display

Parameter ? display

7-inch touch ? screen

Main road parameters

Three-phase ? voltage, three-phase current, frequency, status, bus temperature ? (customized), harmonics, load percentage, electrical energy

Active power, ? reactive power, apparent power, power factor

Branch ? parameters

Phase voltage, ? phase current, load percentage, electrical energy, active power, power ? factor, frequency, state, temperature (customized)

Bus alarm

Overvoltage, ? undervoltage, phase loss, loss, current exceeding high limit, current ? exceeding low limit, frequency fault, overtemperature

Branch alarm

Overcurrent, ? instantaneous overcurrent, current exceeding high limit, current exceeding ? low limit, switch opening, switch closing

Communication? interface

RJ45

withstanding ? voltage

2000VAC/min

Environmental ? conditions for use

Temperature ? range -5 ℃~+40 ℃, humidity range O%~90% (without ? condensation),

Altitude less ? than 2000M (derating should be considered when altitude is 1000M)

Executive ? standards

GB7251-1、GB7251-3
